Product Features

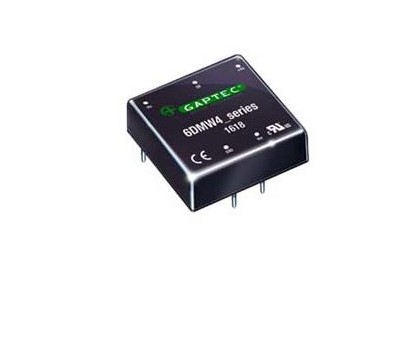

GAPTEC 6DMW4_2424S1.5 | 6W Isolated DC-DC Converter – MORNSUN Equivalent
GAPTEC Electronic 6DMW4_2424S1.5 is a 6W isolated DC-DC converter in a compact 1"x1" DIP package with ultra-wide 4:1 input range and high efficiency, ideal for industrial, medical, and telecom applications. Equivalent to MORNSUN DC-DC converter.

Manufacturer: GAPTEC Electronic
Manufacturer Product Number:6DMW4_2424S1.5
Description: DC-DC INDUSTRIAL
Detailed Description: Isolated Module DC DC Converter 1 Output 24V 250mA 9V - 36V Input

DATASHEET GAPTEC 6DMW4_2424S1.5

Part Descriptions

The GAPTEC 6DMW4_2424S1.5 is a high-performance 6W isolated DC-DC converter, engineered for critical applications requiring reliability and efficiency. Housed in a compact 1"x1" DIP package, it offers a wide 4:1 input voltage range, regulated single/dual output, and 1500VDC isolation between input and output.

Designed to be an equivalent of MORNSUN DC-DC converters, this series achieves up to 88% efficiency and can operate reliably in temperatures from -40°C to +85°C. It includes built-in protections against input under-voltage, output over-voltage, over-current, and short-circuit events.

The 6DMW4_2424S1.5 meets CISPR32/EN55032 Class A EMI standards without the need for additional components. For greater versatility, optional chassis-mount (/CM) and DIN-rail mount (/DR) versions are available, featuring added reverse polarity protection.

Features of 6DMW4_2424S1.5 GAPTEC Electronic 6W isolated DC-DC converter

• Ultra-wide 4:1 input voltage range
• High efficiency up to 88%
• No-load power consumption as low as 0.12W
• I/O test isolation: 1.5kVDC
• Input under-voltage protection, output short circuit, over-current, over-voltage protection
• Operating ambient temp.range: -40°C to +85°C
• Meet CISPR32/EN55032 CLASS A, without extra components
• Input reverse polarity protection available with
• Chassis or Din-Rail mounting Industry standard pin-out

Applications of 6DMW4_2424S1.5 GAPTEC Electronic 6W isolated DC-DC converter

• Aerospace and Defense: Rugged reliability and temperature tolerance make it suitable for demanding environments.
• Industrial Automation: Compact size and protections make it an excellent fit for control panels and machinery.
• Telecommunications: Stable power delivery for network and communication systems.
• Medical Devices: High isolation ensures safety in sensitive medical electronics.
• Consumer Electronics: Offers efficiency and safety for embedded electronics and devices.

If you're seeking a reliable alternative to MORNSUN DC-DC converters, the GAPTEC 6DMW4_2424S1.5 is an excellent choice with international standards compliance and robust electrical performance.
